Spiral Model vs Waterfall Model: Choosing the Right SDLC Approach for Your Project

Choosing between Spiral and Waterfall models can make or break your software development project.

The Spiral Model excels with high-risk, evolving requirements, while the Waterfall Model delivers predictability for well-defined projects.

Unlike Agile methodologies that prioritize working software, or pure Iterative models that focus on incremental delivery, these two approaches offer distinct advantages for specific project contexts.

This guide provides a practical framework for selecting the optimal methodology based on your project's risk profile, requirement stability, and organizational constraints.

Making the right choice can significantly improve project success rates and prevent costly methodology mismatches that lead to budget overruns and timeline delays.

Core Differences Overview

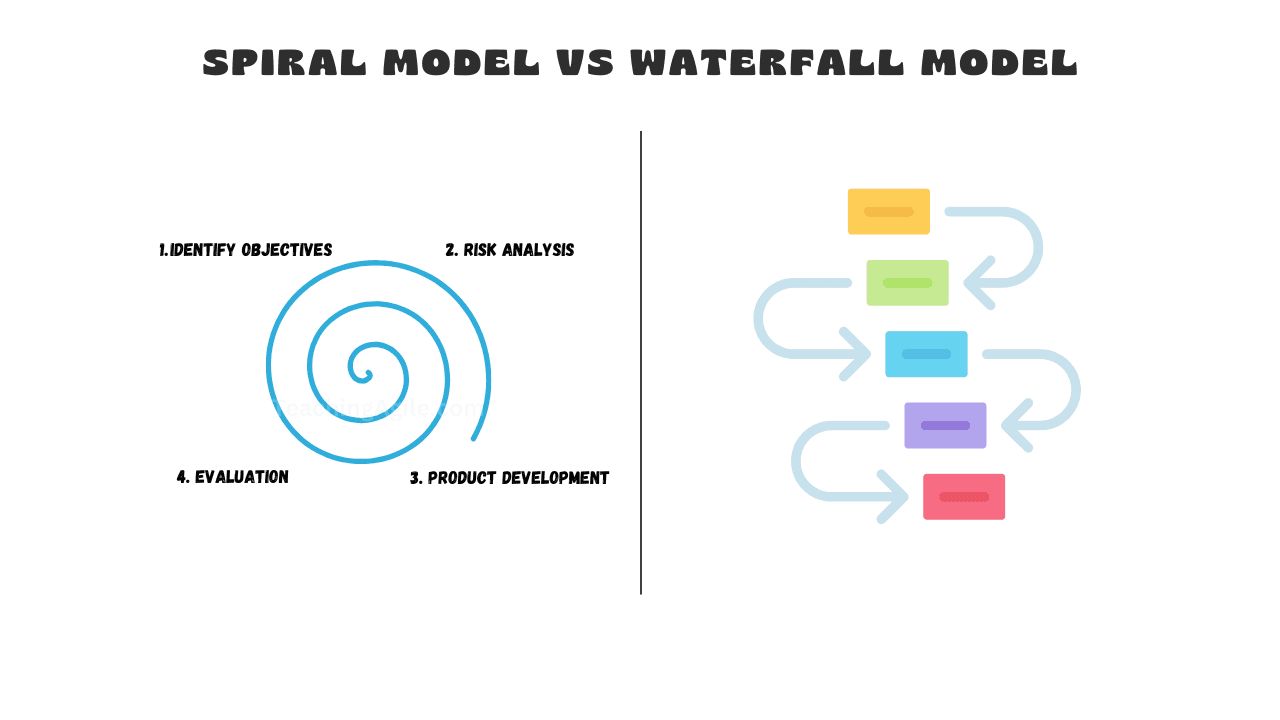

The Spiral Model and Waterfall Model represent fundamentally different approaches to software development. Understanding their core characteristics is essential for making informed methodology choices.

Philosophy and Structure

Spiral Model:

• Risk-driven approach: Every iteration begins with comprehensive risk analysis
• Evolutionary development: Software evolves through multiple spiral cycles
• Adaptive planning: Plans adjust based on discoveries and stakeholder feedback
• Meta-model framework: Incorporates elements from Waterfall, Iterative, and Agile approaches

Waterfall Model:

• Sequential progression: Linear phases with clear boundaries and dependencies
• Comprehensive upfront planning: Extensive documentation and planning before development
• Controlled change management: Formal processes for handling requirement changes
• Predictable outcomes: Well-defined processes enable accurate timeline and budget predictions

Key Structural Differences

Aspect	Spiral Model	Waterfall Model
Progression	Iterative cycles (3-6 spirals)	Sequential phases
Feedback	Continuous throughout development	Primarily at phase boundaries
Deliverables	Working software each iteration	Complete system at end
Flexibility	High adaptability to change	Low flexibility once started
Risk Management	Continuous assessment	Upfront identification
Timeline	Variable iteration lengths	Fixed phase durations

Key Comparison Factors

Risk Management

Spiral Model Risk Management:

The Spiral Model's risk-driven approach provides systematic risk management:

• Continuous Assessment: Risk evaluation in every spiral iteration
• Proactive Mitigation: Risks addressed before they impact progress
• Technical Prototyping: Proof-of-concept development validates approaches
• Risk-Driven Prioritization: Features developed based on risk analysis
• Early Warning Systems: Monitoring triggers alerts for emerging threats

Waterfall Model Risk Management:

Waterfall addresses risks through comprehensive upfront planning:

• Initial Risk Assessment: Comprehensive risk analysis during project initiation
• Documentation Standards: Detailed risk registers with mitigation strategies
• Phase Gate Reviews: Risk assessment at each phase boundary
• Change Control: Formal processes to control scope and requirement risks
• Quality Gates: Structured QA processes prevent defect-related risks

Requirements Handling

Spiral Model Requirements:

• Iterative Refinement: Requirements evolve through each spiral cycle
• Prototype-Driven Discovery: Working software reveals requirement gaps
• Stakeholder Collaboration: Continuous involvement in requirement evolution
• Change Accommodation: Built-in flexibility for requirement changes
• Early Validation: Working software enables immediate requirement testing

Waterfall Model Requirements:

• Comprehensive Elicitation: Extensive requirement gathering upfront
• Detailed Documentation: Complete specifications before development
• Stakeholder Sign-off: Formal approval processes ensure clarity
• Traceability Matrix: Requirements traced through all phases
• Change Control: Formal procedures for evaluating changes

Cost and Timeline

Spiral Model Characteristics:

Factor	Approach	Benefits	Challenges
Budget	Incremental funding	Early ROI, risk mitigation	Uncertainty in total cost
Timeline	Flexible iterations	Market responsiveness	Variable project duration
Resource	Variable allocation	Optimized for spiral needs	Complex resource planning

Waterfall Model Characteristics:

Factor	Approach	Benefits	Challenges
Budget	Fixed upfront allocation	Predictable costs	Limited flexibility
Timeline	Sequential phases	Accurate predictions	Rigid deadlines
Resource	Phase-specific teams	Specialized efficiency	Resource transitions

When to Choose Spiral Model

The Spiral Model excels when projects involve significant uncertainty, risk, or innovation requirements.

Ideal Spiral Scenarios

High-Risk Environments:

• Emerging Technologies: AI/ML, blockchain, IoT implementations
• Complex Integrations: Multi-system integrations with legacy components
• Performance-Critical: Real-time systems with strict requirements
• Security-Sensitive: High-security environments requiring continuous assessment
• Market Uncertainty: Products targeting rapidly changing markets

Evolving Requirements:

• Startup Projects: Companies discovering product-market fit
• Digital Transformation: Organizations changing fundamental processes
• User Experience Focus: Applications requiring extensive user research
• Innovation Projects: R&D projects exploring new possibilities
• Platform Development: Multi-purpose platforms with evolving use cases

Example Success: E-commerce Platform

A retail company used Spiral for their e-commerce platform:

• Iteration 1: Basic product catalog with user validation (3 months)
• Iteration 2: Shopping cart and payment processing (4 months)
• Iteration 3: Recommendation engine and mobile optimization (3 months)
• Results: Significant increase in online sales and improved conversion rates

When Waterfall Model is Better

Choose Waterfall for:

• Well-defined, stable requirements
• Regulatory compliance projects (healthcare, finance, government)
• Fixed-price contracts with clear scope
• Infrastructure projects with known specifications
• Replacement systems with established functionality

Example: Government tax system delivered on-time with 100% regulatory compliance.

Hybrid Approaches

Combining both methodologies can optimize results for complex projects with mixed characteristics.

When to Use Hybrid

Mixed Project Characteristics:

• Regulatory foundation with innovation needs: Compliance requirements plus user experience discovery
• Stable core with evolving features: Established functionality plus new capabilities
• Multiple development streams: Different risk profiles for different components
• Phased market entry: Different approaches for different market segments

Hybrid Implementation Strategies

Sequential Hybrid:

• Phase 1: Waterfall for requirements and compliance foundation
• Phase 2: Spiral for development and user experience
• Phase 3: Waterfall for final testing and deployment

Parallel Hybrid:

• Component-based selection: Choose methodology by component risk level
• Risk-based allocation: High-risk components use Spiral, low-risk use Waterfall
• Synchronized delivery: Coordinate timelines across methodologies

Example: Government Portal

A federal agency used hybrid approach for citizen services:

• Waterfall Phase: Security and compliance framework (4 months)
• Spiral Phases: User experience discovery and optimization (6 months)
• Waterfall Phase: Production deployment and training (2 months)
• Results: 100% compliance, 4.5/5.0 user satisfaction, 15% under budget

Decision Framework

Use this systematic approach to select the optimal methodology for your project.

Selection Criteria

Primary Assessment Factors:

Factor	Spiral Favors	Waterfall Favors
Risk Level	High technical/business risk	Low, well-understood risks
Requirements	Evolving, uncertain	Stable, well-defined
Stakeholder Availability	High engagement possible	Limited, scheduled involvement
Timeline Flexibility	Flexible, market-driven	Fixed deadlines
Budget	Incremental funding	Fixed budget allocation
Innovation Level	High innovation/R&D	Established technology
Regulatory Compliance	Moderate requirements	Strict compliance needs

Quick Decision Guide

Choose Spiral Model if 3+ conditions are true:

• Project involves new or unproven technologies
• Requirements likely to evolve during development
• High stakeholder involvement available
• Timeline can accommodate iterative development
• Budget allows incremental investment
• Risk management critical to success
• Innovation/user experience are primary objectives

Choose Waterfall Model if 3+ conditions are true:

• Requirements are well-defined and stable
• Regulatory compliance requires extensive documentation
• Fixed-price contract with clear scope
• Timeline is inflexible with specific delivery dates
• Budget is fixed with limited flexibility
• Team has limited iterative experience
• Quality assurance requires comprehensive upfront planning

Methodology Effectiveness by Project Type

Project Type	Spiral Model Strength	Waterfall Model Strength
High-Risk, Complex	High effectiveness	Lower effectiveness
Stable Requirements	Moderate effectiveness	High effectiveness
Regulatory Projects	Good effectiveness	High effectiveness
Innovation Projects	High effectiveness	Lower effectiveness
Fixed-Scope Contracts	Moderate effectiveness	High effectiveness

Industry Applications

Different industries favor specific methodologies based on regulatory requirements and risk profiles.

Healthcare and Medical Systems

Waterfall for Regulatory Systems:

• Medical Device Software: FDA validation requires comprehensive documentation
• Clinical Trial Systems: Predefined protocols and regulatory requirements
• HIPAA Compliance: Clear privacy and security standards

Spiral for Innovation:

• Digital Health Apps: User experience and adoption uncertainty
• Telemedicine Platforms: Evolving user needs and technology
• AI Diagnostic Tools: Algorithm development and validation

Financial Services

Waterfall for Compliance:

• Regulatory Reporting: Clear requirements and standardized formats
• Core Banking Systems: Established processes and compliance
• Payment Processing: Industry standards and security protocols

Spiral for Market-Facing:

• Digital Banking: User experience and competitive features
• Investment Platforms: Market-driven features and optimization
• Cryptocurrency Trading: Rapidly evolving market landscape

Manufacturing and Industrial

Waterfall for Control Systems:

• SCADA Systems: Established industrial protocols and safety
• Manufacturing Execution: Well-defined processes and standards
• Safety Systems: Clear requirements and established protocols

Spiral for Digital Transformation:

• IoT Integration: Sensor integration and analytics uncertainty
• Predictive Maintenance: Algorithm development and optimization
• Digital Twins: Model development and validation

Common Misconceptions

Clearing up widespread misunderstandings about both methodologies helps teams make better-informed decisions based on actual methodology characteristics rather than myths.

Spiral Model Myths

Myth 1: "Spiral Model is Just Agile with More Documentation"

Reality: While both are iterative, the Spiral Model differs fundamentally from Agile:

• Risk Focus: Spiral prioritizes risk management; Agile prioritizes working software and customer collaboration
• Iteration Structure: Spiral uses four-quadrant risk-driven iterations; Agile uses time-boxed feature-driven sprints
• Planning Horizon: Spiral involves longer-term planning; Agile emphasizes emergent planning
• Stakeholder Involvement: Spiral has structured stakeholder involvement; Agile emphasizes continuous customer collaboration
• Documentation: Spiral creates moderate documentation; Agile minimizes documentation

Myth 2: "Spiral Model Always Takes Longer and Costs More"

Reality: Spiral can actually reduce time and cost for appropriate projects:

• Early Risk Mitigation: Preventing major late-stage failures saves significant time and money
• Early Value Delivery: Working software in early iterations provides early ROI
• Scope Optimization: Iterative refinement prevents building unnecessary features
• Quality Improvement: Continuous testing and refinement reduces rework costs
• Stakeholder Alignment: Regular feedback prevents costly misalignment issues

Project Experience: Spiral projects with high uncertainty often achieve better cost performance than Waterfall for similar complexity projects due to early risk mitigation and stakeholder feedback.

Myth 3: "Spiral Model is Too Complex for Small Projects"

Reality: Spiral complexity scales with project needs:

• Scalable Framework: Number of spirals and iteration complexity adjusts to project size
• Risk-Proportionate: Risk management effort scales with actual project risks
• Simplified Implementation: Small projects can use simplified spiral processes
• Tool Support: Modern tools reduce overhead for small team spiral implementation
• Value Threshold: Projects with sufficient uncertainty benefit from spiral regardless of size

Myth 4: "Spiral Model Requires Specialized Risk Management Expertise"

Reality: Risk management skills can be developed and shared:

• Basic Risk Techniques: Many risk assessment techniques are straightforward to learn
• Team-Based Risk Management: Entire team participates in risk identification and management
• Tool Support: Risk management tools simplify assessment and tracking processes
• Training Availability: Risk management training widely available for development teams
• Incremental Learning: Teams can start with basic risk management and improve over time

Waterfall Model Misconceptions

Myth 1: "Waterfall is Outdated and Should Never be Used"

Reality: Waterfall remains optimal for specific project types:

• Regulatory Environments: Comprehensive documentation and predictable processes remain valuable
• Well-Defined Requirements: Clear requirements with low change probability suit Waterfall
• Fixed Contracts: Contractual arrangements often align better with Waterfall predictability
• Compliance Projects: Audit and compliance requirements may necessitate Waterfall documentation
• Infrastructure Projects: Technical infrastructure projects often have clear specifications

Current Usage: A significant portion of enterprise projects continue to use Waterfall or Waterfall-hybrid approaches successfully for appropriate project types.

Myth 2: "Waterfall Doesn't Allow Any Changes"

Reality: Waterfall includes formal change management processes:

• Change Control Board: Structured process for evaluating and approving changes
• Impact Analysis: Systematic assessment of change impacts on schedule, budget, and quality
• Stakeholder Approval: Formal approval processes ensure change alignment
• Documentation Updates: Systematic updates to project documentation for approved changes
• Version Control: Formal version control for requirements and design changes

Myth 3: "Waterfall Always Delivers Poor Quality"

Reality: Waterfall's structured approach can deliver high quality:

• Comprehensive Testing: Dedicated testing phase allows thorough quality validation
• Quality Gates: Formal quality checkpoints prevent defects from propagating
• Review Processes: Systematic reviews at each phase catch issues early
• Standards Compliance: Adherence to quality standards throughout development
• Documentation Quality: Comprehensive documentation supports long-term quality

Quality Data: Well-executed Waterfall projects achieve defect rates comparable to other methodologies for appropriate project types.

Myth 4: "Waterfall Teams are Less Collaborative"

Reality: Waterfall involves significant collaboration within appropriate structures:

• Cross-Functional Reviews: Regular reviews involve multiple disciplines and stakeholders
• Team Specialization: Deep collaboration within specialized phase teams
• Stakeholder Involvement: Structured stakeholder involvement at key decision points
• Documentation Collaboration: Collaborative creation and review of project documentation
• Knowledge Sharing: Formal knowledge transfer processes between phases

Myth 5: "Waterfall Cannot Handle Complex Projects"

Reality: Waterfall has successfully delivered many complex systems:

• Large-Scale Systems: Many enterprise systems successfully developed using Waterfall
• Mission-Critical Systems: Space programs, defense systems, and infrastructure projects
• Regulatory Systems: Complex healthcare, financial, and government systems
• Integration Projects: Large-scale system integration projects with multiple vendors
• Long-Term Projects: Multi-year projects with stable requirements and clear objectives

Examples: NASA space missions, air traffic control systems, and major ERP implementations demonstrate Waterfall's capability for complex projects.

Conclusion and Recommendations

Success depends on aligning methodology characteristics with specific project contexts rather than organizational preferences.

Choose Spiral for high-risk, uncertain, or innovative projects requiring continuous stakeholder engagement.

Choose Waterfall for well-defined requirements, regulatory compliance, or fixed-scope contracts.

Use Hybrid when projects have mixed characteristics requiring both approaches.

The key is systematic selection based on project risk profile, requirements stability, and compliance needs rather than team familiarity or industry trends.

Continue Reading

Frequently Asked Questions

Frequently Asked Questions (FAQs) / People Also Ask (PAA)
